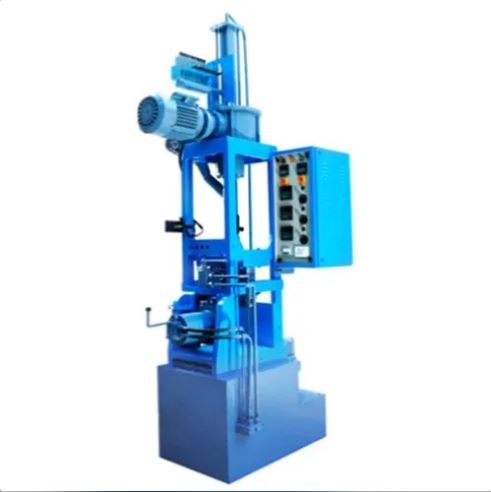

Vertical Injection Moulding Machine

Clamping Force 23m/t

Material Mild Steel

Max. Plasticizing Capacity 60 Kgs/hr

Injection Pressure 400 Kgs/cm2

Pump Drive 120 Kgs/cm2

Heating 3.25 K.W.

Power Supply Electric

Our finest quality range of Vertical Injection Moulding Machines 600 VRT is manufactured and exported by us that are highly demanded across the country. These are extensively used in varied commercial industries for fabricating different footwear. We have specialized in manufacturing many kinds of footwear like non foam shoes, Sandals, slippers and full plastic footwear. Our offered range is broadly appreciated for their sturdy design and optimum functionality.

Features:

Vertical type injection system: This system outreaches the traditional design. As the dimension, is only half of the traditional machines

Mould space: It is easy to match with various kinds of moulds and reduce limitations of Mould design

Temperature controlled by three temperature controllers: Gives perfection in maintaining the melt Temp. with least variation

Ergonomically designed and inter changeability

Also available RAM/VRT 400 and VRT 1000 tailor made according to customer's requirement

Technical Specifications:

Injection Unit

Diameter of Screw 55 mm

Maximum Shot Capacity 600 Grms.

Plasticizing Capacity 60 Kgs/hr

Stock of Screw 230 mm

Number of Screw Rotation 210 r.p.m.

Absolute Injection Pressure 11.0 m/t

Specific Injection Pressure 400 Kgs/cm2

Mould Clamping Unit

Clamping Pressure 23m/t

Clamping Stroke 100 mm

Maximum Mould Size (LxWxH) 300 X 200 X 225mm

Electrical Equipments

Motor for drive of oil pump 7.5 H.P.

Motor for driving Plasticizing Screw 7.5 H.P.

Heating Capacity 3.25 K.W.

Heating Control (Pyrometer) 3 No.

(Sunvik) 3 Nos.

Hydraulic Equipments

Hydraulic Pump 52 Litres/mm

Pump Pressure 120 Kgs/cm2

General

Floor area of machine 750 mm X 1150 mm

Weight of Machine Mounted on Machine
